Product information

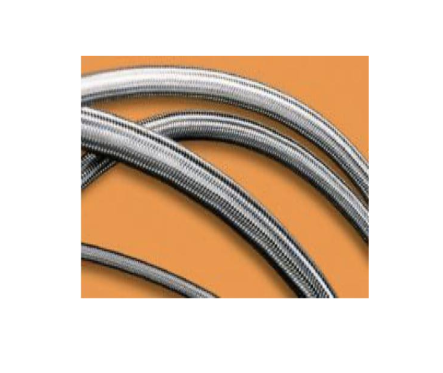

TEFLON (PTFE) HOSES
– WITH ONE S/S WIRE BRAIDED COVER
The PTFE hose core is manufactured from Teflon. No pigments or additives are
incorporated thus giving the hose liner a translucent appearance free from any
contamination. The wire braiding (1 or 2 wire available) is produced from AISI
304/S15 or BS970 1970 quality hard drawn tensile stainless steel wire.
PTFE hose has an excellent temperature charateristics both in high and low
temperature. Excellent chemical resistant, non contamination properties, low
coefficient of friction and resists deterioration.
Reduced static versions of all hoses are available for applications where
electrically resistive fluids are being transferred at high flow rates.
The standard wall products are not recommended for steam-cold water cycling.
We recommend the Heavy Wall range for the most demanding applications
including intense thermal cycling

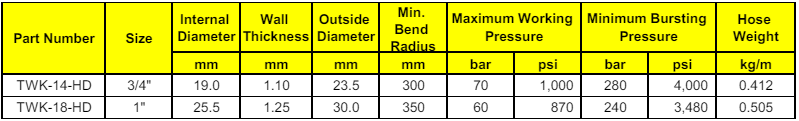

Available in HD Series:
** Temperature Range: Continuous: -54°C to +260°C
